Rooster™ Sensor100

The Rooster™ Sensor100 is a next-generation air velocity and temperature sensor with a built-in touchscreen display for configuring alarm set points and output behavior. Using an instrumentation grade sensing element, the Sensor100 comes calibrated and ready to deploy. With its user-friendly, color touch-screen interface, the Sensor100 can be set-up into your building or system with unprecedented ease.

Responsive Touch

Built for laboratory professionals, the built-in LCD screen of the Rooster™ Sensor100­ works with or without gloves

Enhanced Security

Dual password protection allows users to personalize operational experience, but not override safety features set by facility managers

Multiple Sensor Options

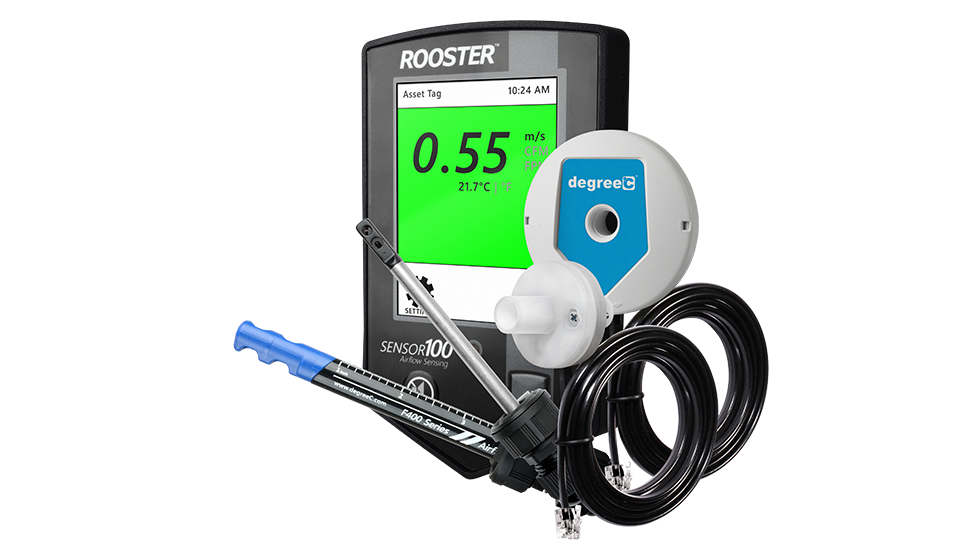

Accepts side-flow sensor for negatively pressurized cabinets, insertion probe for exhaust ducts, and inline retrofit design to replace legacy airflow alarm monitors

Easy Upgrade Procedure

USB port allows for in-the-field firmware updates

Specs & Details

Features
  • Glove-friendly, color touch panel display
  • Whole-screen background colorization to convey current state, augmented by flashing red LED while in alarm state
  • Instrumentation-class sensor, compatible with latest 2014 NSF requirements for repeatability and high accuracy calibration.
  • Accepts side-flow sensor for negatively pressurized cabinets, insertion probe for exhaust ducts and inline retrofit design to replace legacy airflow alarm monitors
  • Full temperature compensation built-in for accuracy across wide operating temperature range
  • Air temperature sensing included and displayed on-screen
  • Wide velocity range capability, for use in face-velocity or duct-velocity applications
  • Fast and intuitive set-up, with no need to have manual on hand.
  • Dual password protection allows users to personalize operational experience, but not override safety features set by facility managers.
Specifications
  • LCD Display Area: 57mm x 70mm (2.30in x 2.7in)
  • Air Velocity Range: 0.15 - 10.0 m/s (30-2,000 fpm)
  • Velocity Repeatability: 1% (NSF49:2014 Requirement)
  • Response Time: < 1 Second
  • Supply Voltage: 24 VAC/VDC & Wall Adapter
  • Red LED Indicator: 160° Viewing Angle
  • Alarm Volume: 0 - 85dB (Adjustable)
  • Relative Humidity: 5 - 95% (Non-Condensing)
  • Operating Temperature: 5°C - 60°C (40°F - 140°F)
  • Storage Temperature: -40°C - 85°C (-40°F - 185°F)
  • Compliance Standards: CE, RoHS
Normal lead-time is 1 - 2 weeks.
