°C Grid - Sensor Pole Array

Add to Cart

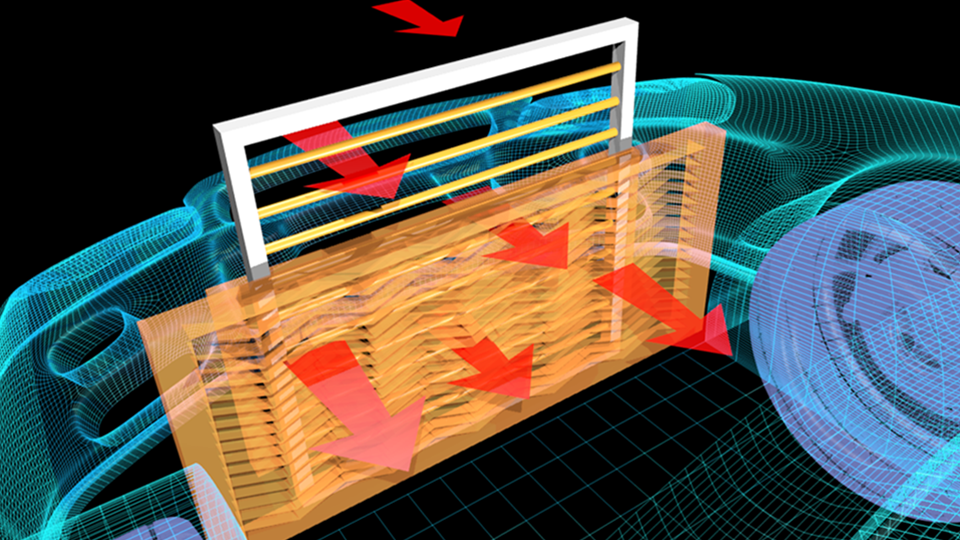

The °C Grid is our proprietary data acquisition software and are designed for use with our °C Port family of data acquisition instruments. Typical applications for the ° C Grid include automotive cabin comfort testing and defrost analysis, planar airflow analyses, and CFD validation of heat exchangers.

°C Grid System

°C Grid system comes with Grid, Interface Box, cables, and software (PC not included)
null
null

Multi-Channel Data Acquisition

Aggregate sensor data with the °C Port Data Collection Instrument.

Specs & Details

Specifications

  • Accuracy (the greater of): ±1% of FS or ±0.025m/s (5fpm) or ±5% of reading
  • Standard Calibrated Flow Range: 0.15 – 20.0 m/s (30 – 4000 fpm)
  • Housing Length: 3” to 42“ [15 - 105cm]
  • Sensor Quantity: 1 - 7
  • Power: USB-Based input, use PC or °C Port Instrument
  • RoHS Certified & CE Marked
  • Supported Software: AccuTrac™
Data Sheet (°C SPAR)
Data Sheet (°C Port)
Manual (AccuTrac)
